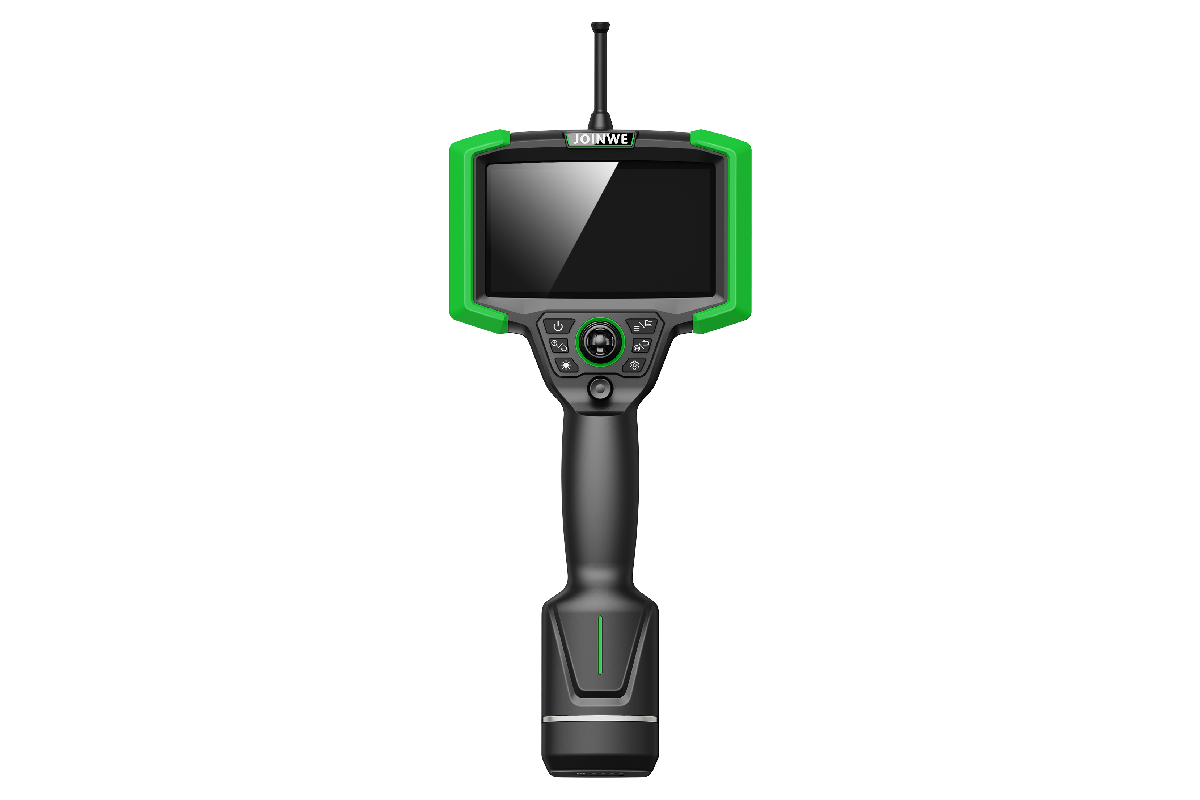

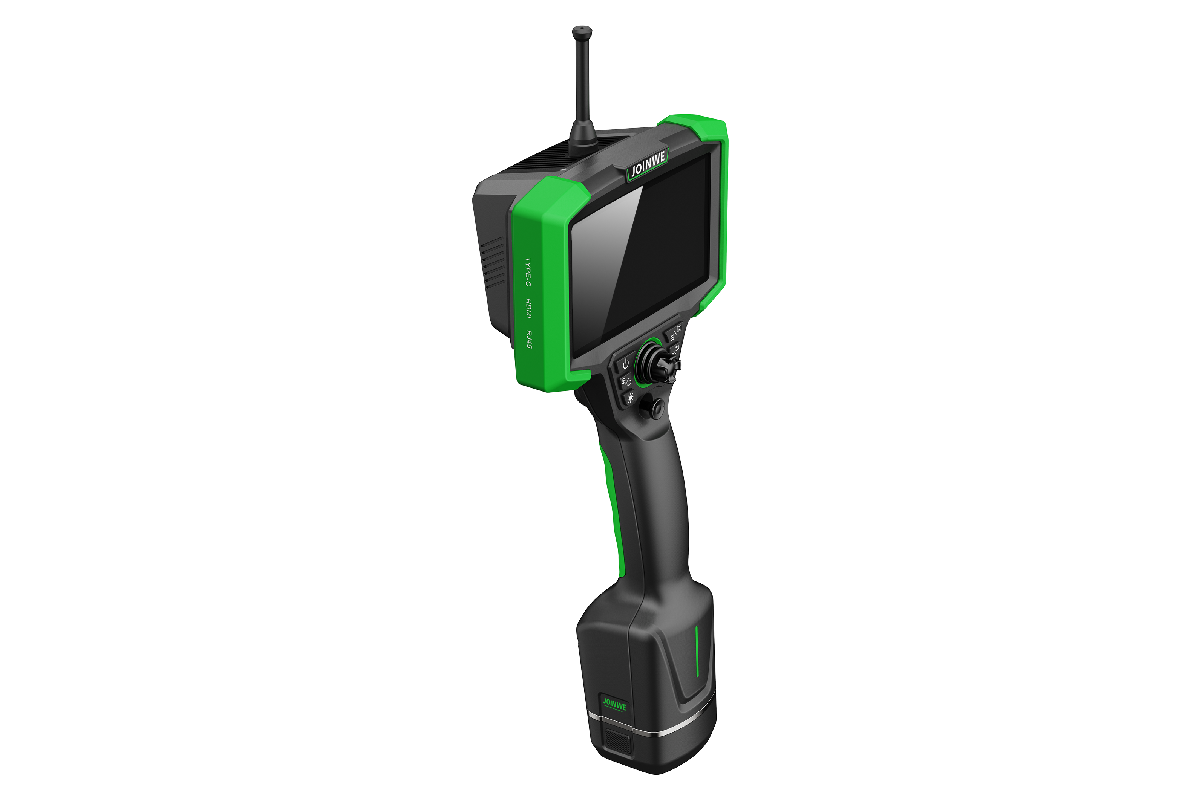

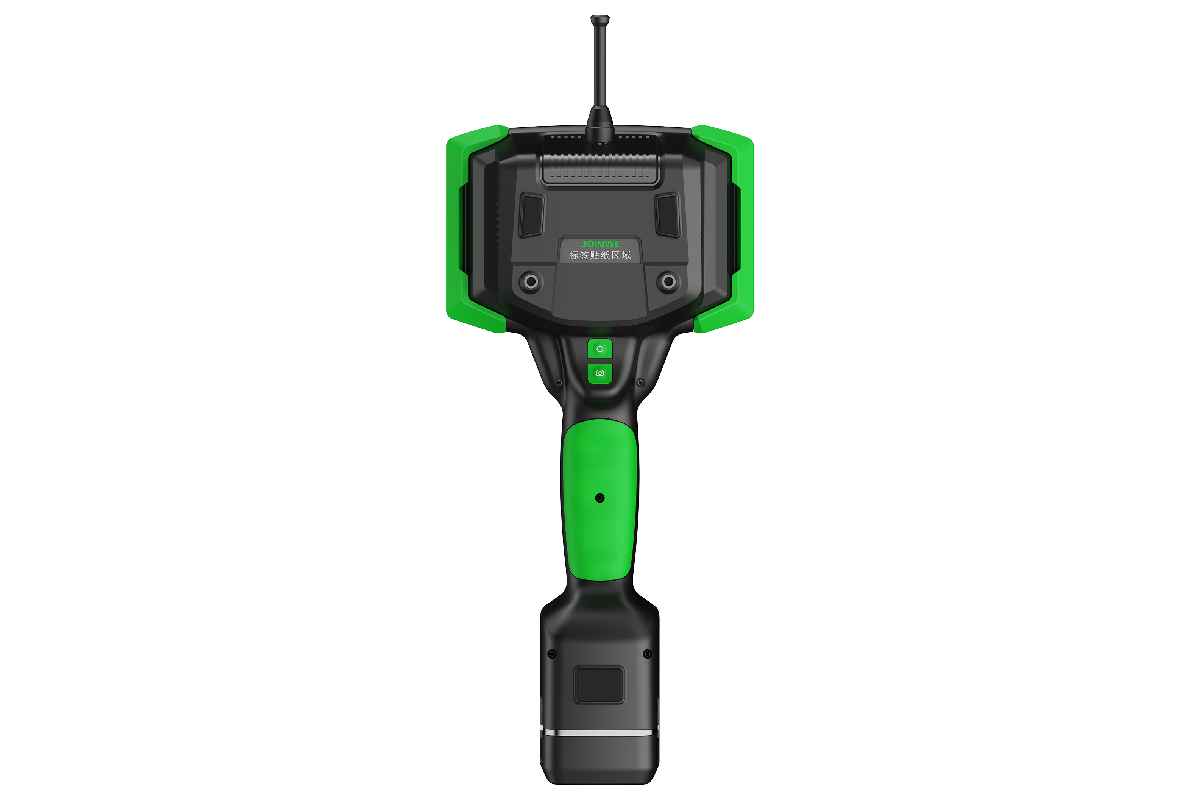

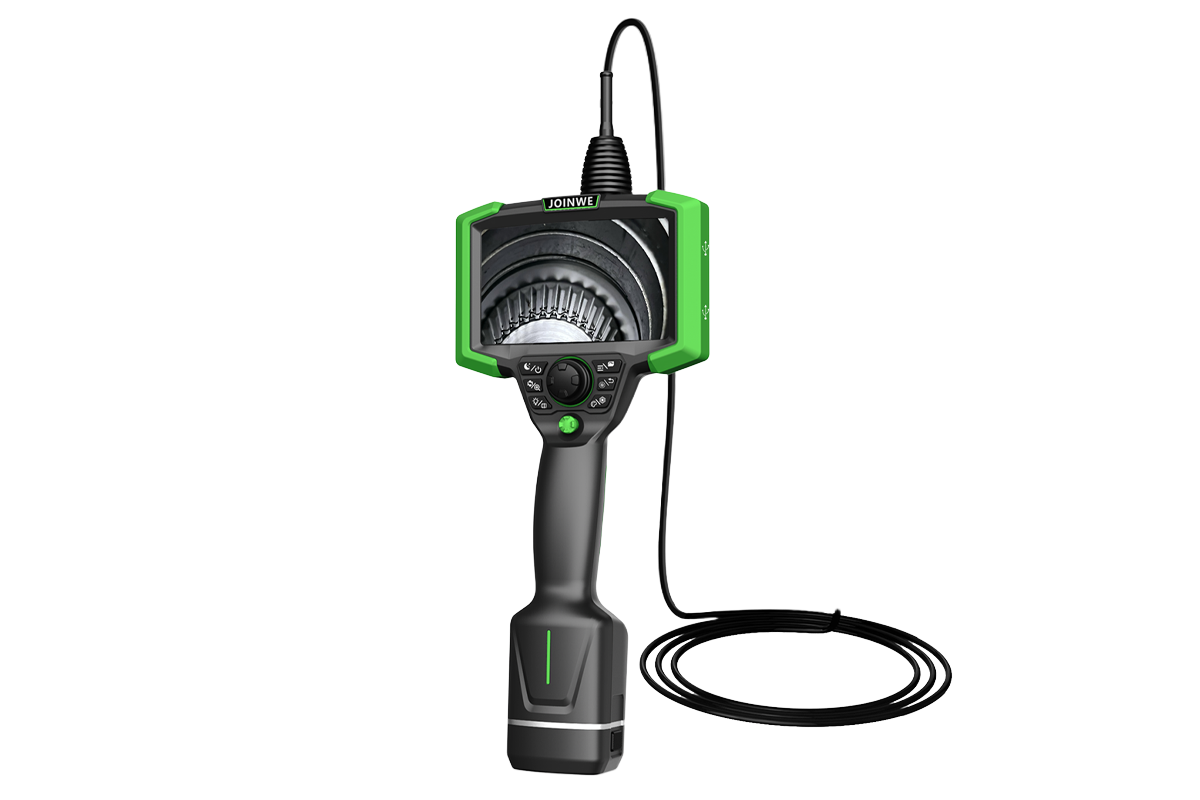

Motorized Industrial Endoscope – Precision Inspection with Powered Tip Control
The Motorized Industrial Endoscope is an advanced visual inspection tool engineered for high-precision, non-destructive testing in complex industrial environments. Featuring motorized articulation, this endoscope allows smooth, joystick-controlled movement of the camera head for fast, accurate inspections without manual bending—perfect for applications where precision and repeatability are critical.

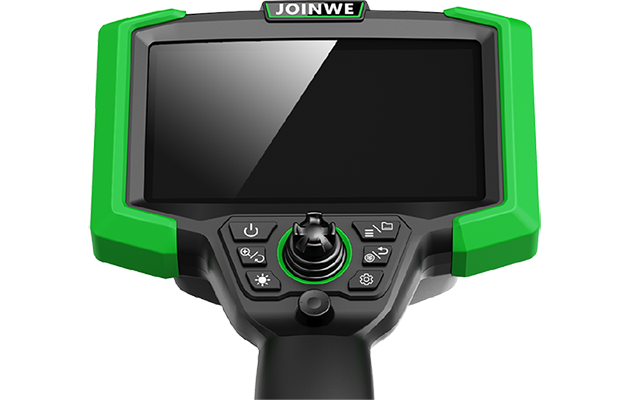

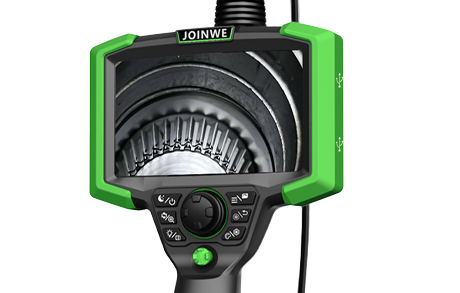

JW-F series of intelligent industrial videoscope, having 5.5-inch high-brightness OLED industrial touch screen, intelligent platform equipped with RK3588 high-performance processor, the system that has a variety of built-in custom color modes, dual-stick design, aim to provide high-quality images and convenient operation experience. Hall electromagnetic joystick electric 360° guidance, following lock, fast and slow mode, guide step, overload protection, probe reset and other functions, optimize the efficiency and stability of operation.
It’s designed for complex internal inspections where maneuverability, precision, and image clarity are critical—especially in automotive, aerospace, power generation, and manufacturing industries.
Motorized Industrial Endoscope Features:
1. RK3588 high-performance processor with 4x Cortex-A76 and 4x Cortex-A55 cores. Provides superior computational and graphic processing power.

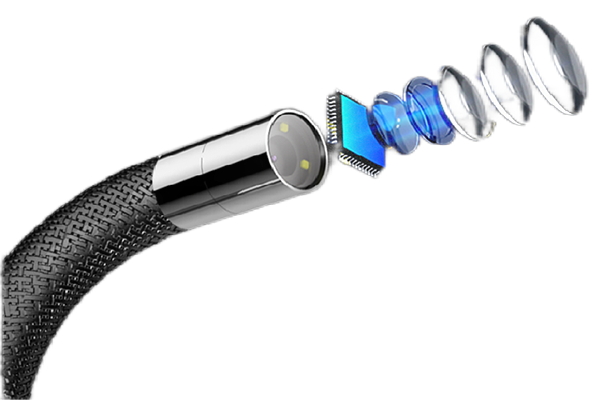

2. Using imported sapphire glass encapsulated lens, configured with high brightness quartz fiber optic light source, to ensure better image results.

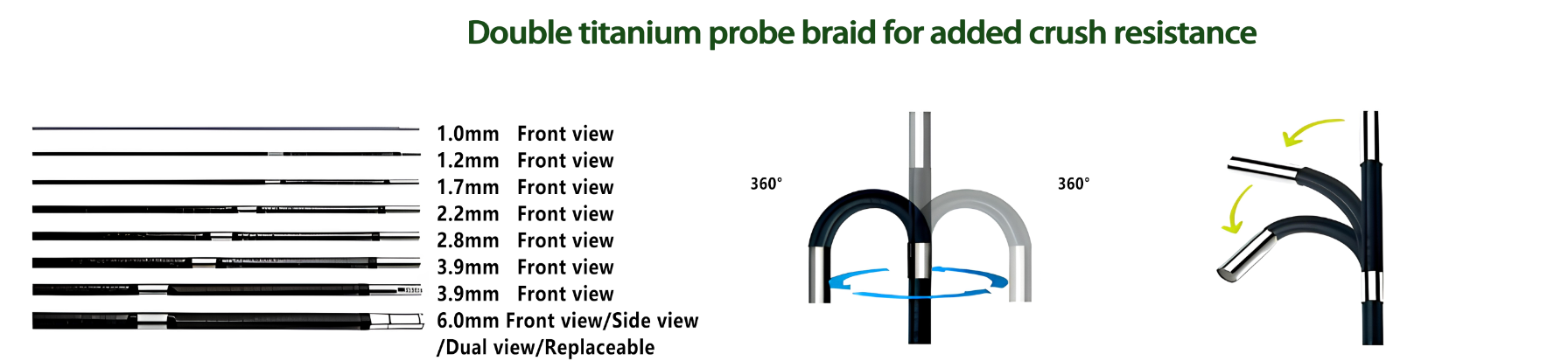

3. Flexible articulation -electric 360°steering function, insertion tubes of different sizes and viewing directions can be changed easily and quickly. 2-way, 4-way, or full 360° powered tip control for unmatched maneuverability.

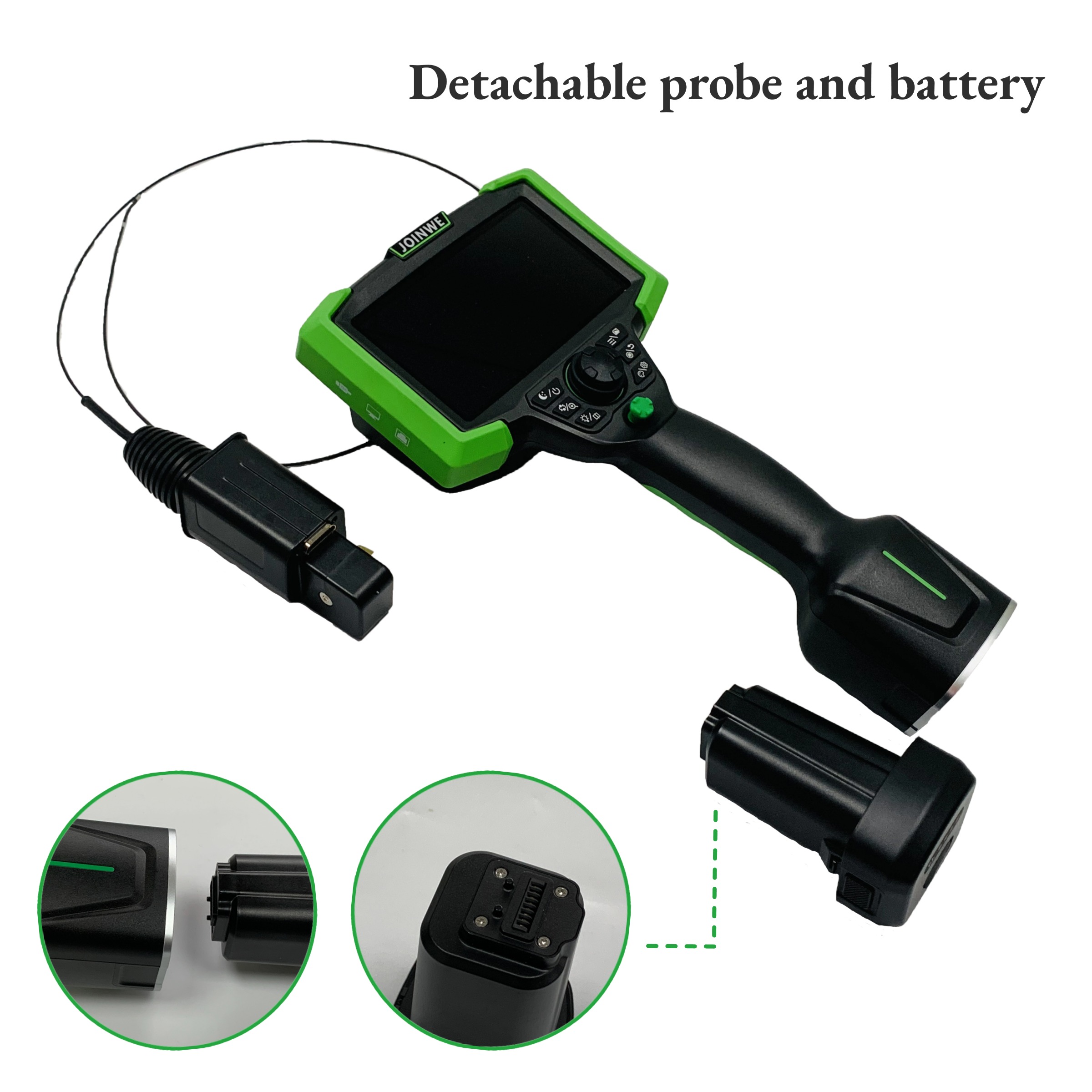

4. Detachable insertion tube section uses four layers of tungsten braid, which enhances the abrasion resistance and durability of the insertion tube and can ensure inspection on rough surfaces.
5. Sunlight-resistant display for clear visibility even outdoors. High-definition imaging (720p / 1080p) with optional digital zoom for clear defect detection.
6. Durable Probe – Oil-, water-, and dust-resistant flexible or semi-rigid probe, available in 2.8 mm – 8 mm diameters and lengths up to 10 m.

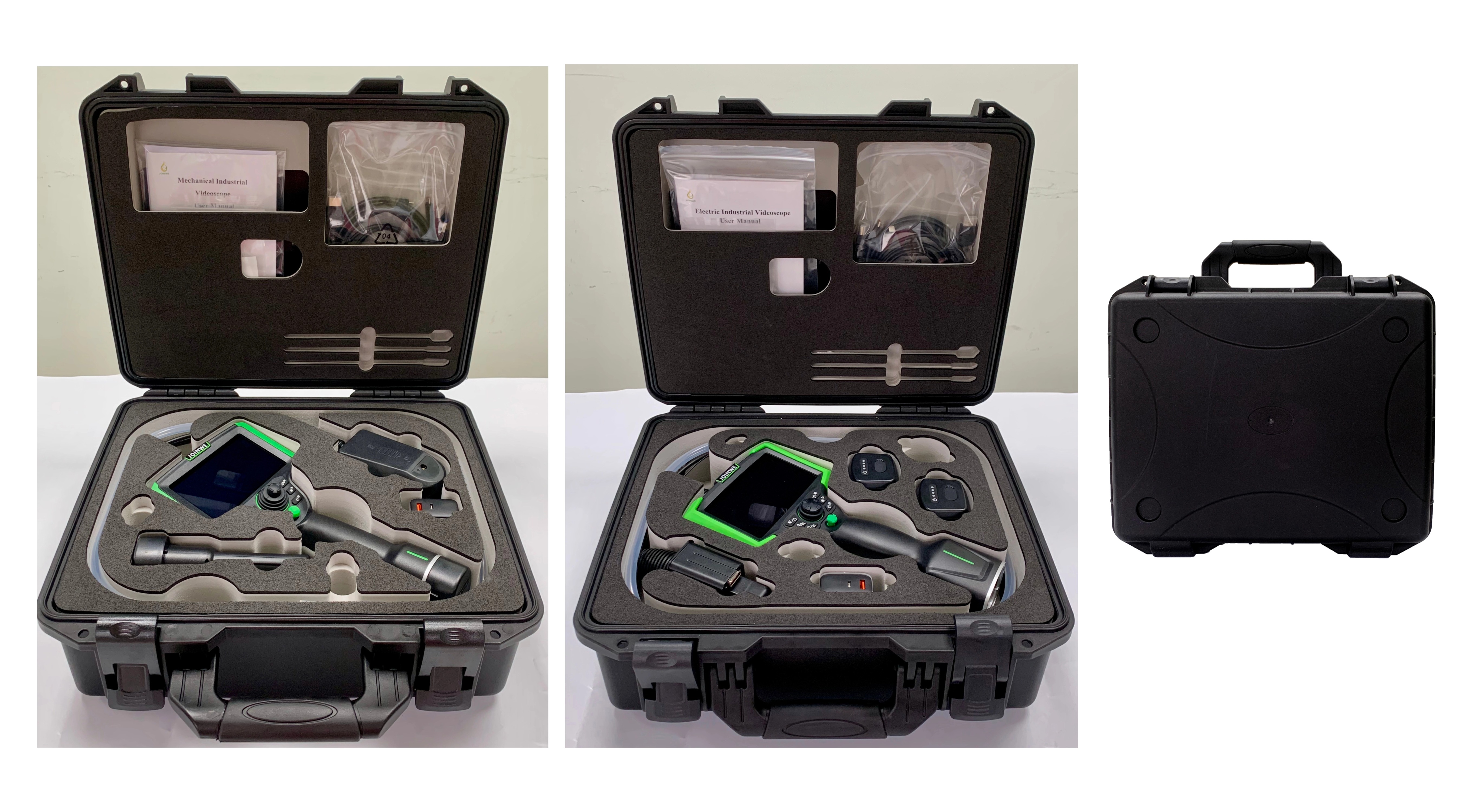

7. Portable Design – Lightweight handheld or wheeled workstation configurations available for different work environments.
Advantages Over Manual Endoscopes
Faster Navigation – Reach target areas quickly with powered control.
Improved Precision – Smooth, stable articulation for repeatable viewing angles.
Reduced Operator Fatigue – Less hand strain during long inspections.
Better Documentation – HD recording and optional measurement features for professional reports.
Other function:
• Add tags: Use the small joystick to add markers when recording video, and view the video to quickly locate the marker point.
• Black box: Turn on real-time recording in the settings, the operation screen will be recorded automatically, and you can customize the recording duration.
• Generate test report: It can select images and generate PDF documents.
Applications
Aerospace: Turbine blades, combustion chambers, fuel systems
Automotive: Engine cylinders, exhaust manifolds, transmissions
Energy Industry: Boilers, heat exchangers, wind turbines
Oil & Gas: Subsea pipelines, offshore drilling equipment
Industrial Manufacturing: Weld seam inspections, machinery maintenance
The Motorized Industrial Endoscope is the ideal choice for professionals who demand speed, accuracy, and durability in visual inspections. From turbine engines to complex pipelines, this tool delivers crystal-clear visuals and precise control—helping you detect issues early and improve maintenance efficiency.
