Oil contamination is an important technology for evaluating the degree of solid particle contamination in oil; it can measure the particle size of particles in the oil sample and count them according to the pre-selected particle size range to obtain important information about the particle size distribution, thereby determining the degree of oil contamination.

Particle counters are widely used in military, aviation, aerospace, electric power, petroleum and other fields, and can measure the solid particle contamination of oil, organic liquid and polymer solution; the instrument has built-in GB/T14039, ISO4406, NAS1638, GJB420A,

GJB420B, SAE749D, factory OCT17216, AS4059D and other particle contamination level standards, and can customize the channel according to user requirements.

Specification:

The light-shielding method oil particle contamination detector uses the light-shielding method (Light Extinction) (also known as light-blocking method or extinction method) principle specified in ISO4402/ISO11171 to detect oil contamination. It has the advantages of fast detection speed, strong anti-interference, high precision, and good repeatability.

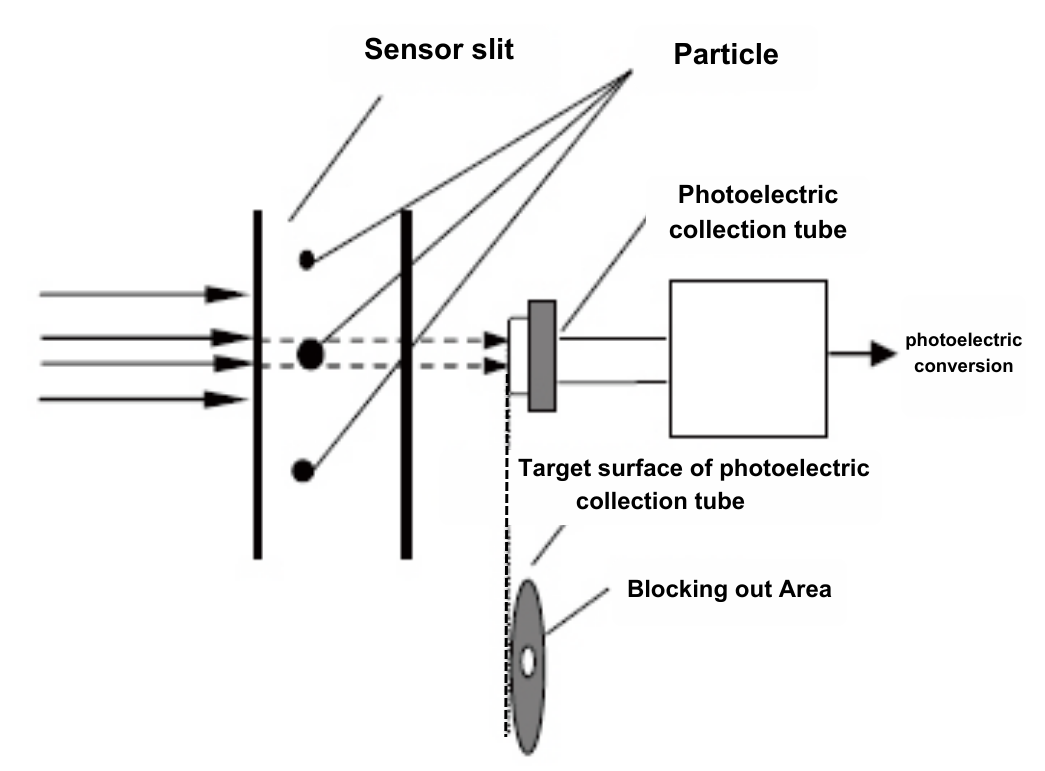

The principle of the light-shielding method is shown in the left figure. A parallel light beam passes vertically through the sample flow chamber with a cross-sectional area of  A and irradiates the photoelectric receiver. When there are no particles in the liquid flow, the circuit outputs a voltage of E. When a particle with a projected area of a in the liquid flow passes through the sample flow chamber, it blocks the parallel light beam and attenuates the transmitted light. At this time, a negative pulse with an amplitude of E. is output on the circuit:

E. = (a/A)XE If the particle is spherical, or described by an equivalent diameter d, and E is equal to 10v,

then E. = 7.854Xd2/A, that is, the projected area of the particle and the pulse voltage amplitude are linearly related

1. Adopting the principle of photoresistance method (shading method), it has the advantages of fast detection speed, strong anti-interference, high precision and good repeatability.

2. Adopting 8-inchcolor high-definition LCD touch screen display, touch screen operation, and editable measurement program.

3. Precise measurement and sampling system to realize constant sampling speed and precise control of sampling volume.

4. High-precision sensors ensure high-resolution power and accuracy.

5. Built-in NAS1638, ISO4406-1999, ISO4406-2017, ISO4406-1987, GB/T 14039-2012, GJB420B-2006, GJB420B-2015, GJB420A-1996, AS4059E differential, AS4059E cumulative, AS4059F differential, AS4059F cumulative, ROCT17216- 1971, ROCT17216-2001, SAE749D-1963, NAS1638/ISO4406 and other particle pollution grade standards, and can be built in required standards according to user requirements.

6. 990 particle sizes can be set to facilitate particle size analysis.

7. Three calibration curves (ACFTD calibration curve, ISOMTD calibration curve, GOST calibration curve) can be stored at the same time, and can be easily switched to reduce conversion errors.

8. Automatic calibration function, the calibration process is convenient and quick.

9. Test data storage function, which can not only save test data in the internal memory of the instrument, but also store the test data on an external USB flash drive through the USB interface of the instrument.

10. The built-in printer can directly print out the test report, and input numbers, letters and Chinese characters when printing.

11. The instrument can realize continuous automatic online detection, and the detection interval can be set arbitrarily.

12. You can choose to install a water activity sensor to detect the micro-water content in the oil.

13. With flushing function, the flushing volume can be set arbitrarily.

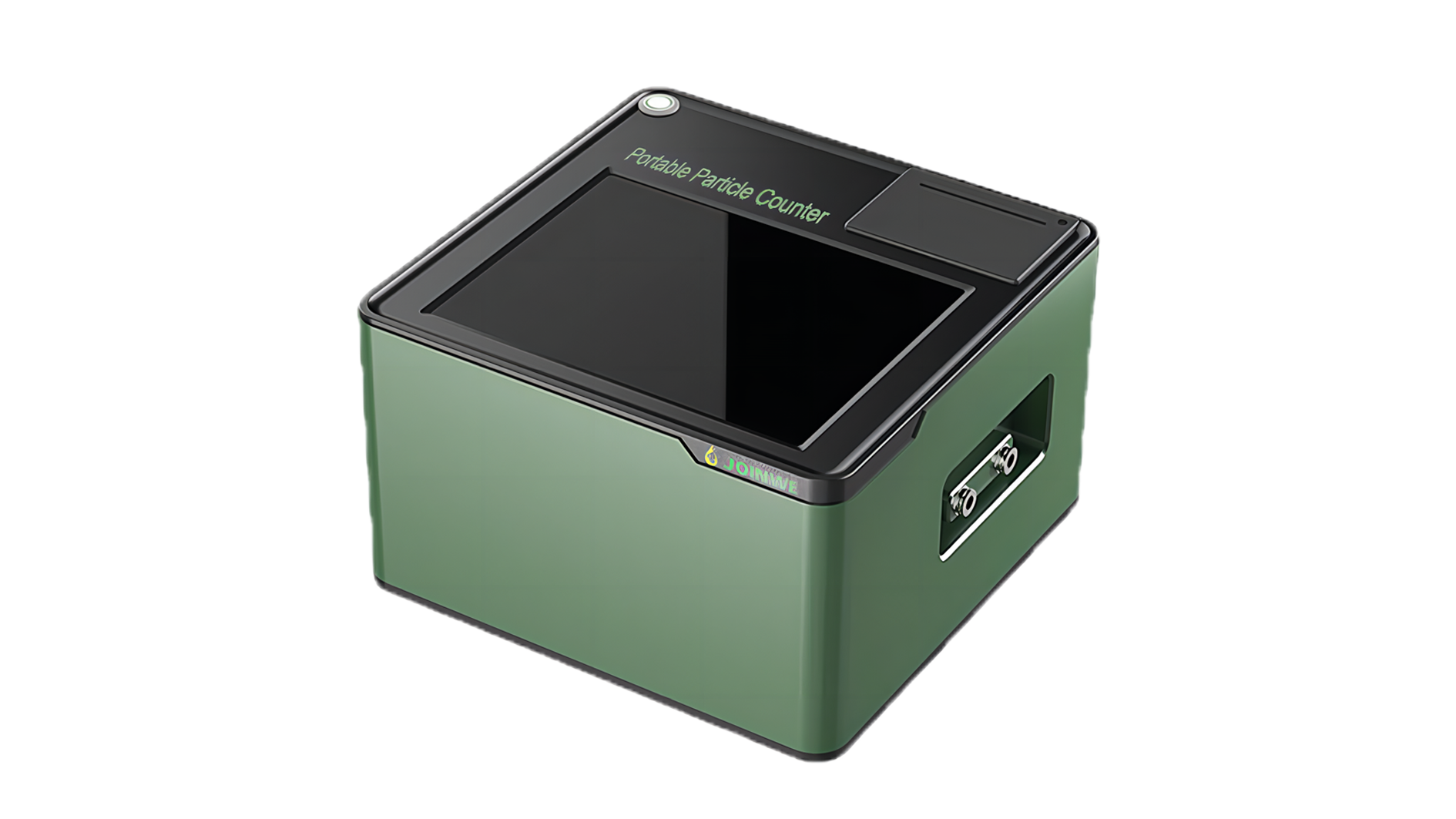

14. It adopts high-strength injection molded imported shell, compact structure, light weight, and easy to carry.

15. Adopt high-precision aluminum wire drawing panel, which is simple, beautiful and durable.

16. RS232 or RS485 interface, which can be connected to a computer or upper computer to complete the transmission, storage and processing of test data.
