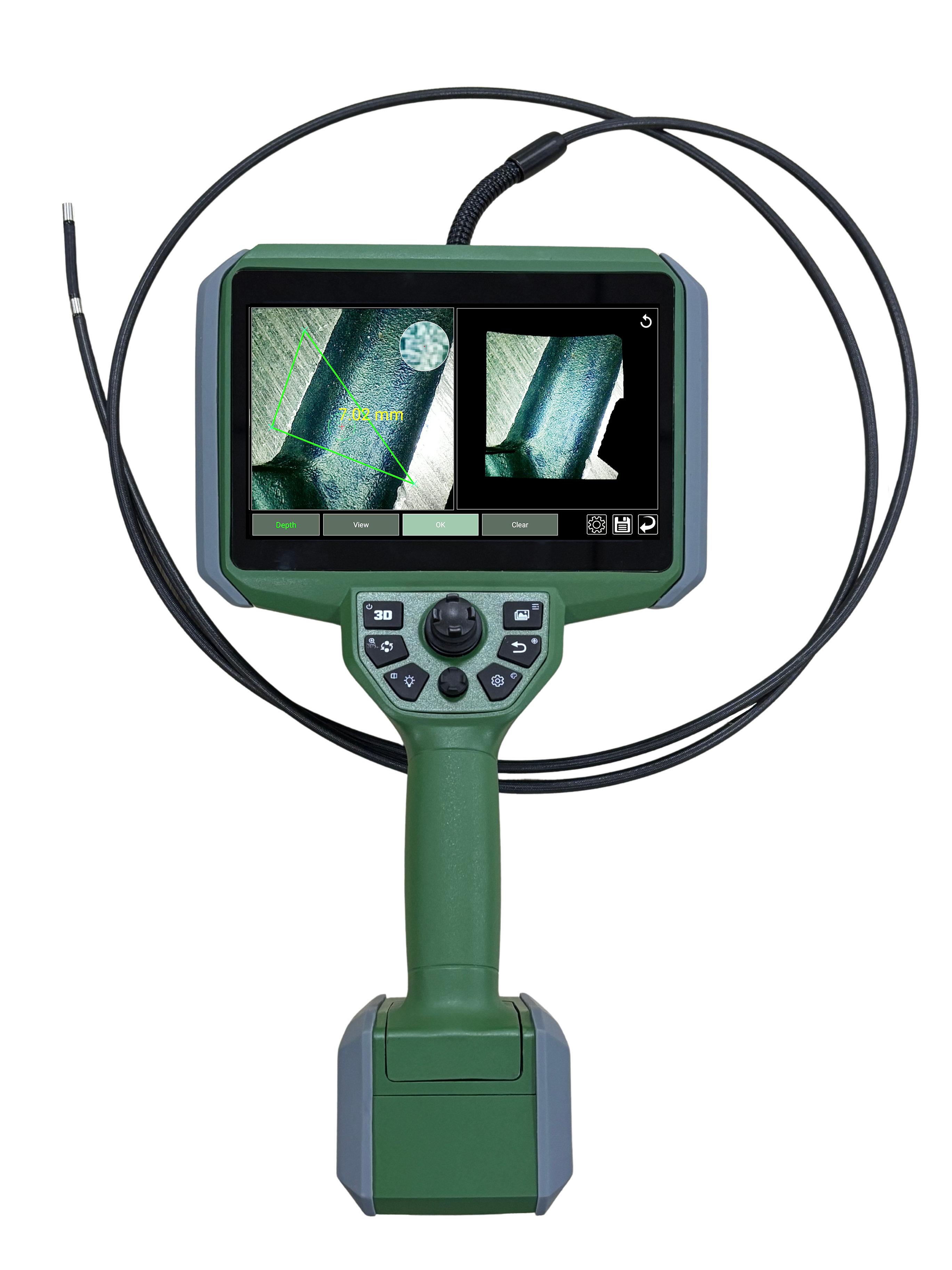

JW-T series 3D measurement industrial endoscopes use the new algorithm of binocular 3D measurement technology, which improves the measurement speed and accuracy. The high-performance GPU enables fast conversion of observation images to 3D point cloud maps and supports multiple measurement modes.
Technical Advantages：
1. Motorized joystick 360° guide with mode of fast and slow, guided stepping, follow lock, fixed-point freedom, overload protection

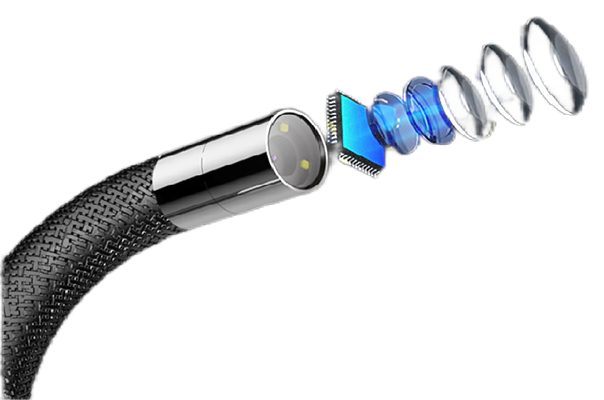

2. Imported sapphire glass encapsulation lens and high-light imported quartz fiber probe to ensure better image results

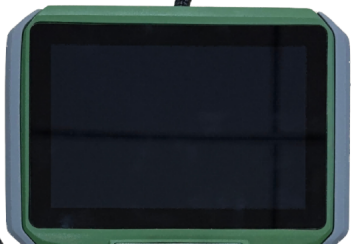

3. 7” high-brightness IPS LCD industrial touch screen, intelligent platform equipped with RK3588 high-performance processor, A76 core frequency 2.4GHz, A55 core 1.8GHz. The structure provides superior computing and graphics processing capabilities, enhancing the brightness of defective parts of the image, and making even the smallest defects clearly visible in daylight.

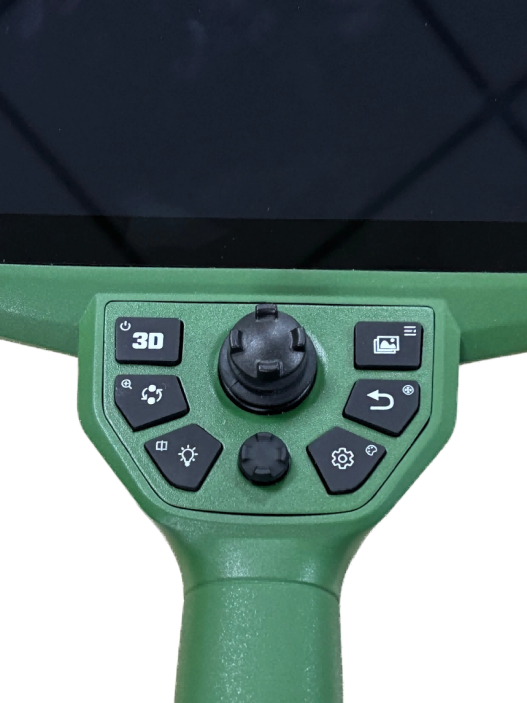

4. Humanized butterfly arrangement, single-hand control can reach the maximum, double joystick design, common functions can be one-click direct

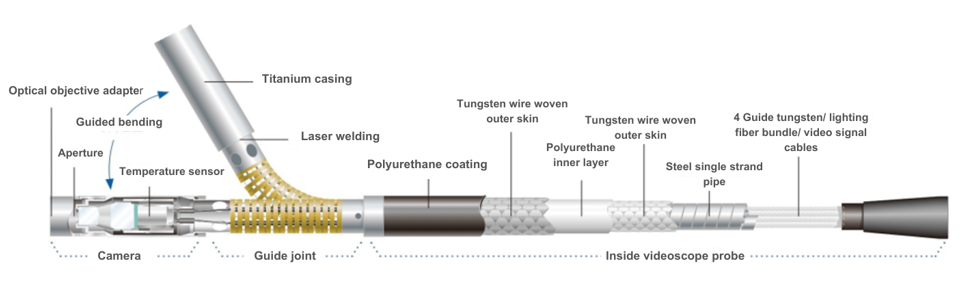

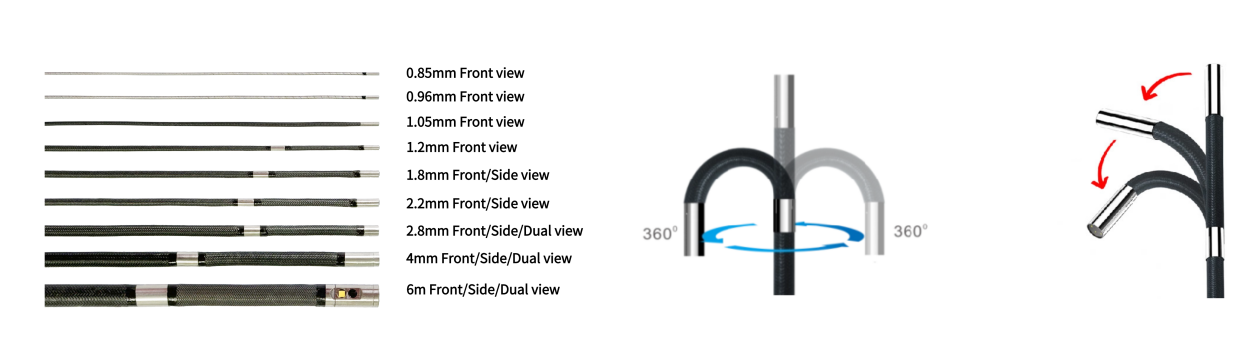

5. Replaceable insertion tube
Ergonomic insertion tube disassembly, can easily and quickly replace 0.85mm, 0.96mm, 1.05mm, 1.2mm, 1.8mm, 2.2mm, 2.8mm, 4.0mm, 6.0mm and other different diameter/length/depth of field/Angle of view/light source/lens insertion tube, to ensure field flexibility, more applications.

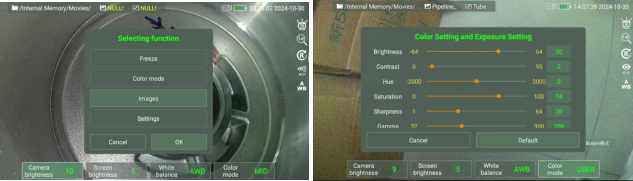

6. Intelligent operating platform
u Multicolor mode
System built a variety of Custom color mode, the Normal/Bright/Dark/Custom, scene can be set according to the use of different environment, can adjust the color properties, such as Color temperature, color difference, tone, saturation, contrast, gamma, edge light, exposure, etc. are adjusted to obtain the best viewing effect, and users are able to optimize and adjust the color of the image according to their personal preferences and specific needs to ensure the best visual experience in different environments.

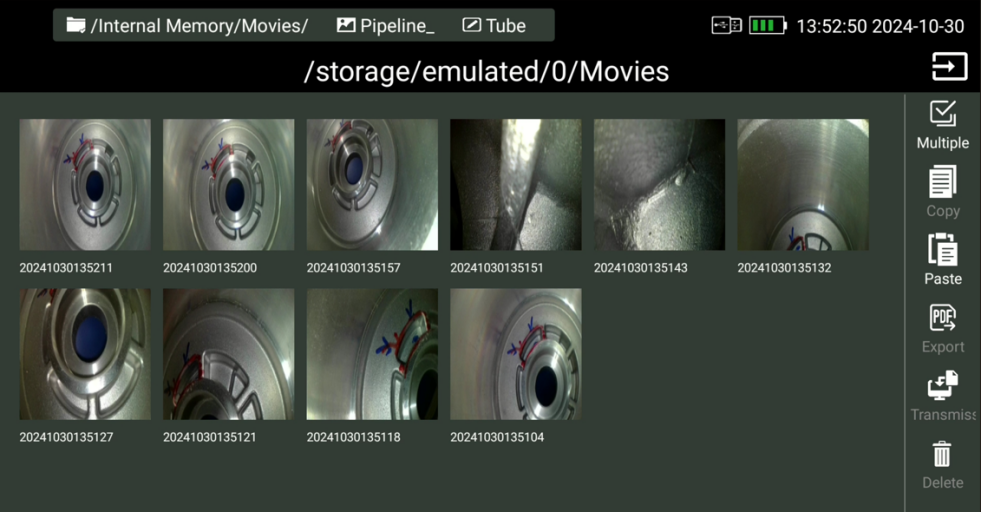

u Intelligent video recording
Video mark:
When recording a video, you can press the small joystick to mark it at any time. When playing a video, the progress bar will mark the mark point, and you can quickly locate the mark point.
Video black box:
Never lose critical inspection record data. Even if you forget to press the record button, Joinwe Smart videoscope will automatically record the last 30 minutes of inspection image data.
u Advanced measurement technologies

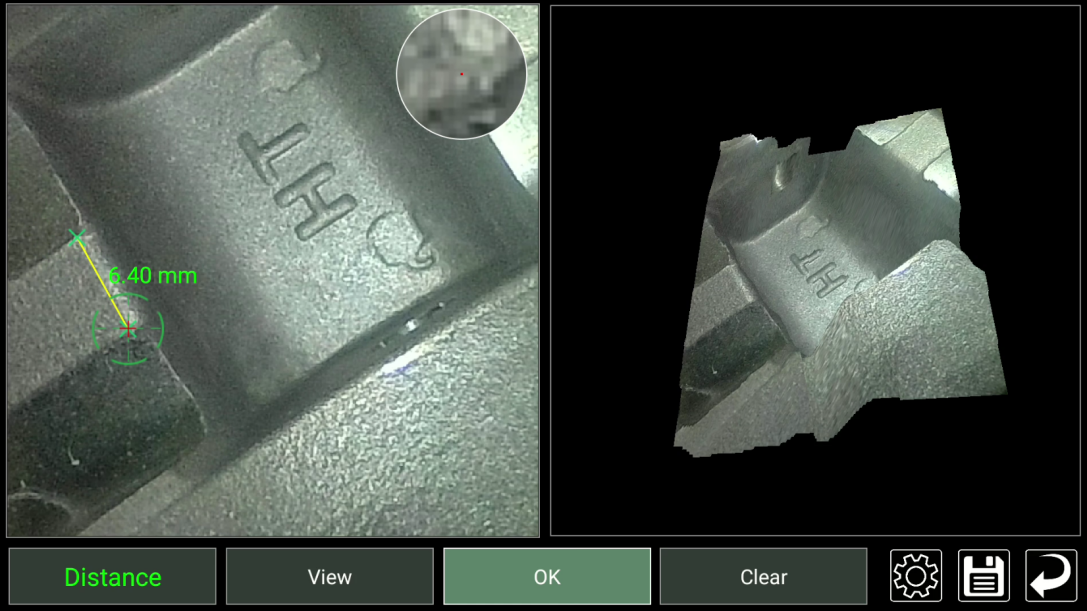

Distance
Application: Cracks, object length, etc.
Operation: Determine an endpoint and then an end to form a single length

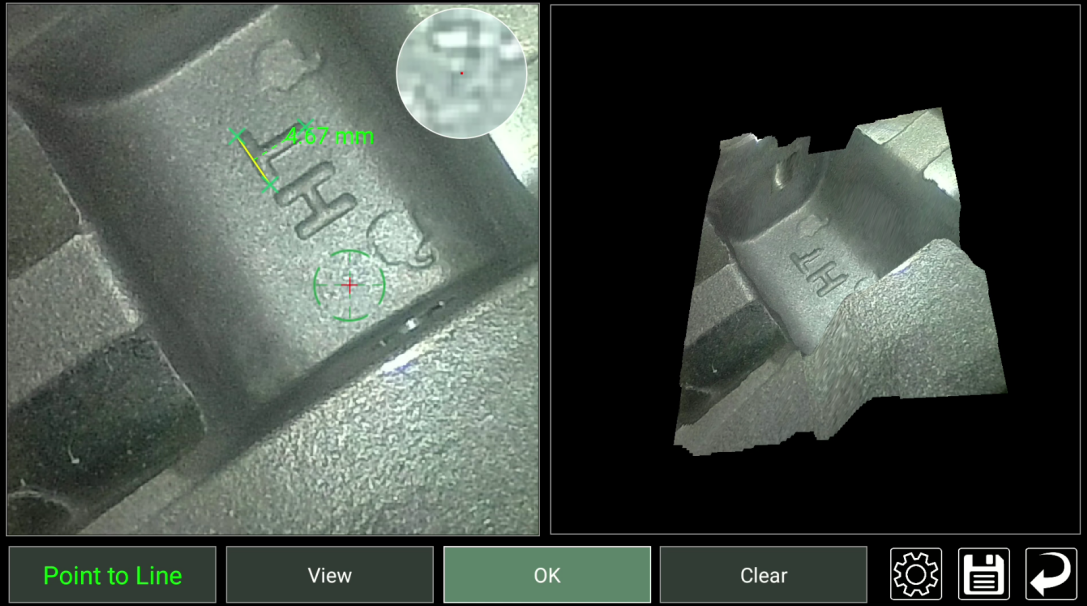

Point to Line
Application: Gaps, impact locations, etc.
Operation: Perpendicular distance between a point and a user-defined line
Multi-Segment
Application: Cracks, defect trends, etc.
Operation: Select Multiple Points and click End Measurement, it will be done automatically

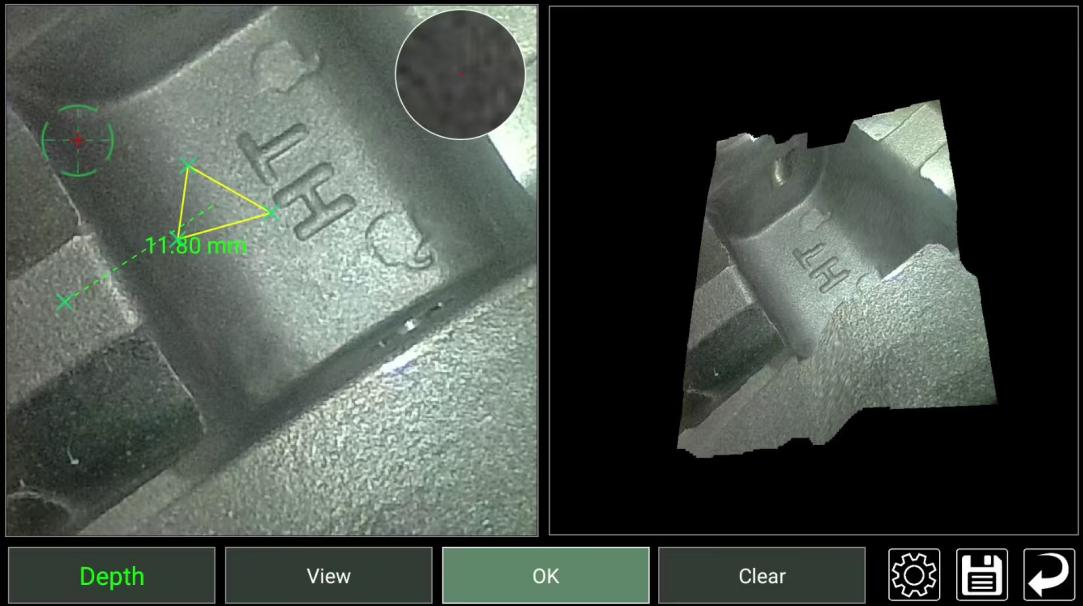

Depth
Application: Depth, diameter, clearance, etc.
Operation: First point three points to determine a surface, automatic identification of the farthest point, you can adjust the automatic identification of this point

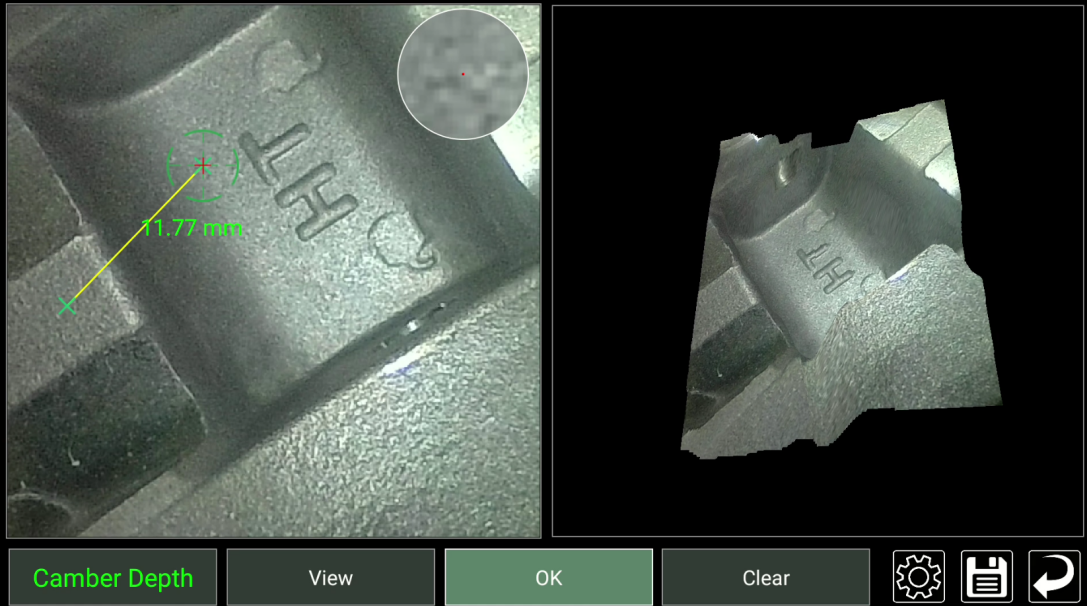

Camber Depth
Application: Surface Depth, diameter, clearance, etc.
Operation: In the case of curved surfaces, select two points, the system calculates their distances to the camera, and the height difference is taken as the depth value

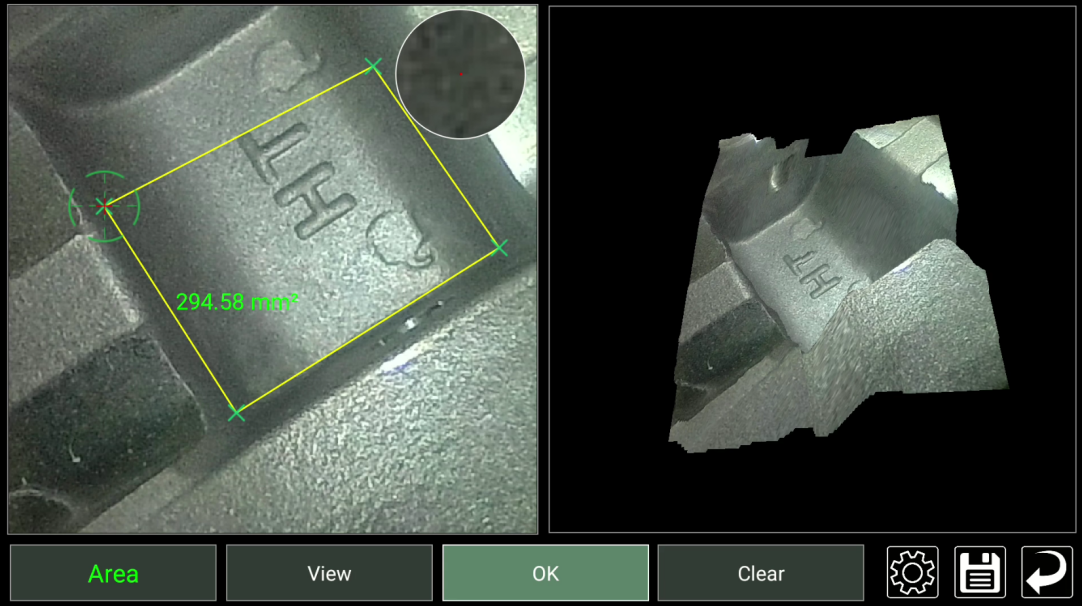

Area
Application: Corrosion, ablation, loss of material, etc.
Operation:Selecting multiple points along the defect boundary and clicking End Measurement will automatically connect the first and last points

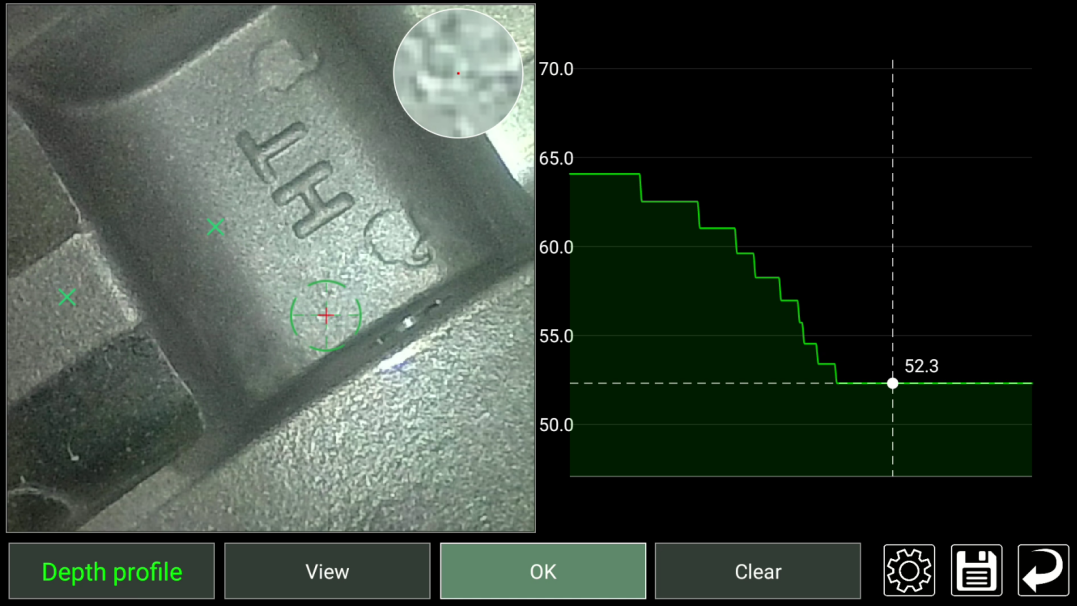

Depth profile
Application: Depth, extent of material loss, etc.
Operation: Selecting two points will make a longitudinal section perpendicular to this actual object, automatically finding the highest or lowest point

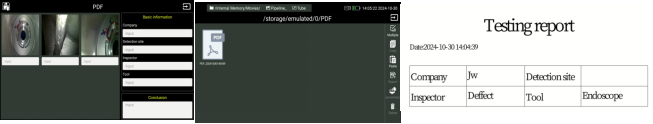

u Inspection report
