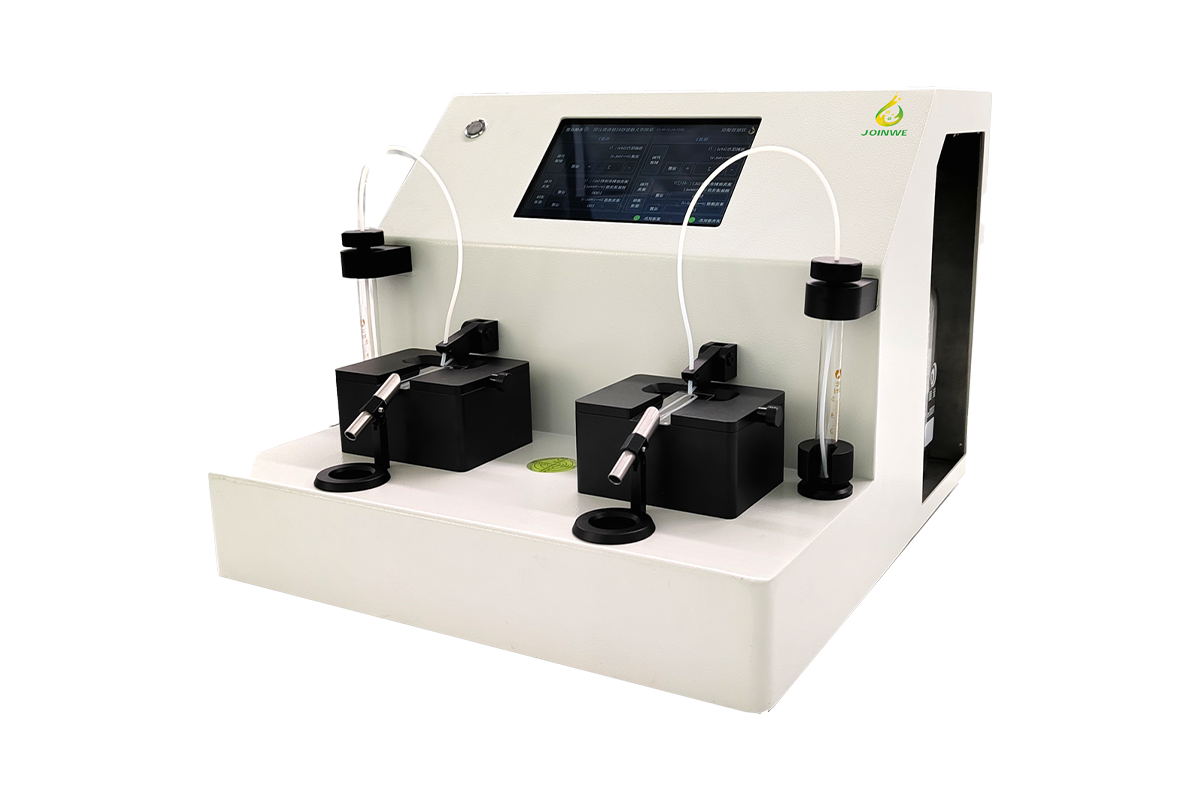

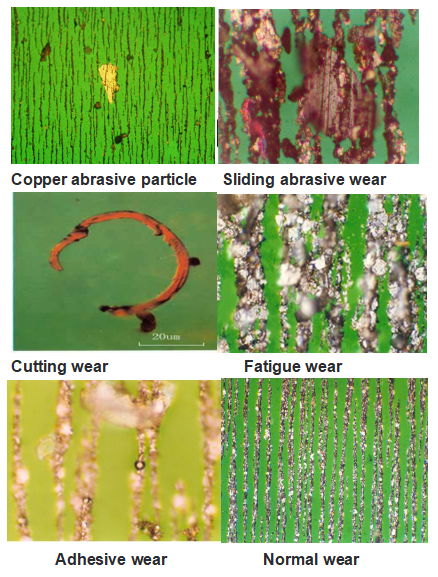

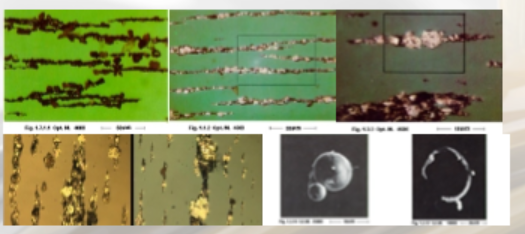

The analytical ferrography system consists of three parts: the analytical ferrography instrument, the ferrography analysis microscope, and the spectrum software management system. The analytical ferrography instrument uses a high-gradient strong magnetic field to separate ferromagnetic and paramagnetic wear particles from machine lubricating oil, and then deposits them in sequence on a glass plate to form ferrography plates. Subsequently, a ferrography analysis microscope is used to observe and analyze the wear particles on the ferrography plates in terms of morphology, size, composition and quantity. In combination with the graph software management system, a user graph database can be established, facilitating the daily management and analysis of the graph.

Specification

1. Dimension and weight

Dimension: 430 mm*380 mm*323 mm  Weight:  About 18.5 kg

2. Using parameters

Quantity of oil sample: 2-3ml

Reagent dosage: 1-20ml

Reagent Detergent: Speed control 0~99-step speed regulation

Mode of regulation Knob: Ferrographic time ≤20min

Incidence of ferrographic sheet: 2°, 3°, 4°

Magnetic field strength: 1.5T

Magnetic field gradient: 5.0T/cm

3. Parameters of hardware

Display screen :7 inch touch screen

Power adapter: DC 12V/3A

4. Parameters of accessories

Dimension of ferrograph sheet: 60mm*24mm*0.17mm

Dimension of test tube: Ø16 mm *100mm

Volume of reagent bottle: 250ml

Dimension of oil tube: Ø2.4 mm * Ø1.5 mm *350 mm

Volume of beaker: 25ml

5. Operating environment

Ambient temperature:  -10°~ +50°

Ambient humidity : 10% ~ 85%

1.Through spectroscopy, the operation and wear status of the equipment and the changing trend of the oil quality can be quickly determined.

2. With the help of ferrography analysis software, the location and cause of wear faults can be accurately determined.

3. The brand-new high-performance and low-power core has stronger anti-electromagnetic interference ability.

4. An independent gas supply system is adopted to ensure that the gas path transmission between the two groups of spectrometers does not interfere with each other, and to overcome the problems of gas leakage or blockage when the instrument is stored for a long time, in extremely cold or hot conditions.

5. High-definition intelligent touch screen, simple operation to improve efficiency, speed adjustment control from 0 to 99 adjustable.

6. Built-in deceleration mode, which can effectively increase the success rate of spectrum preparation, and the speed value can be adjusted in real time.

7. Two ferrograph sheets can be produced simultaneously, which increases the speed of sheet making.

8. It is equipped with an automatic waste liquid recovery system, eliminating the need for complicated operations to handle the waste liquid from each spectral preparation.
