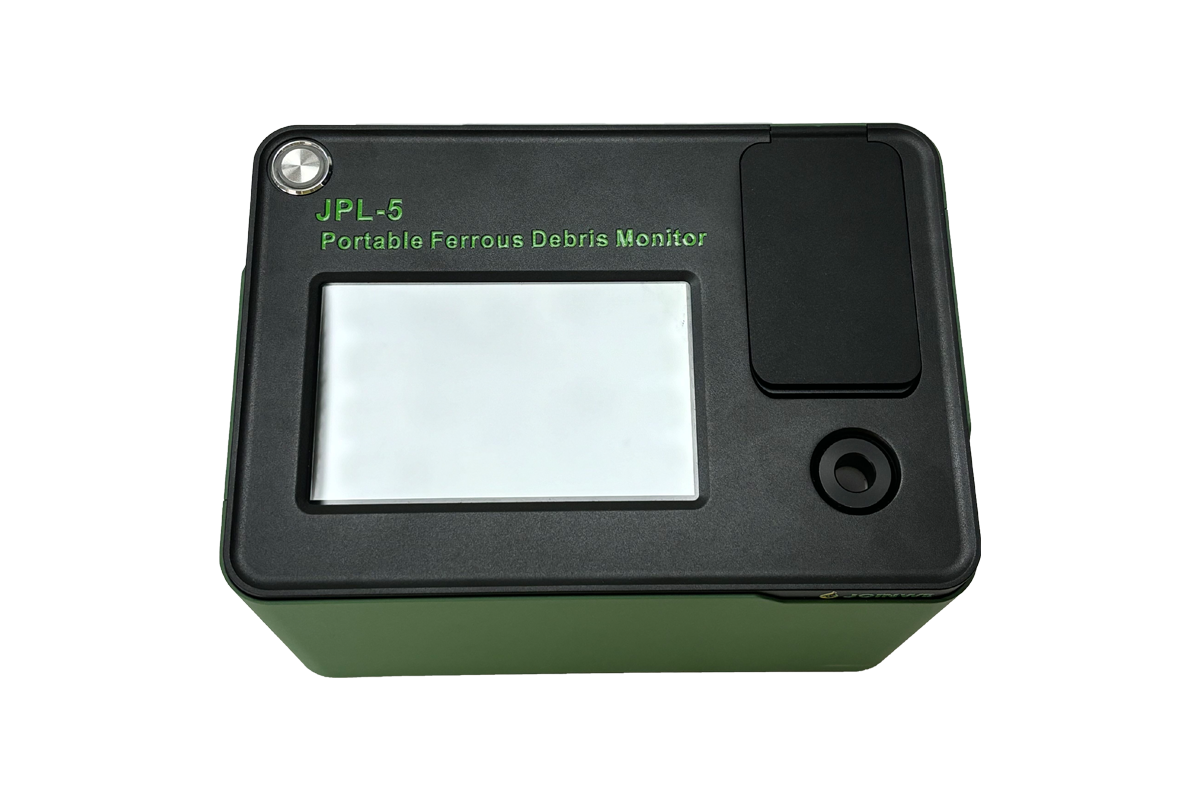

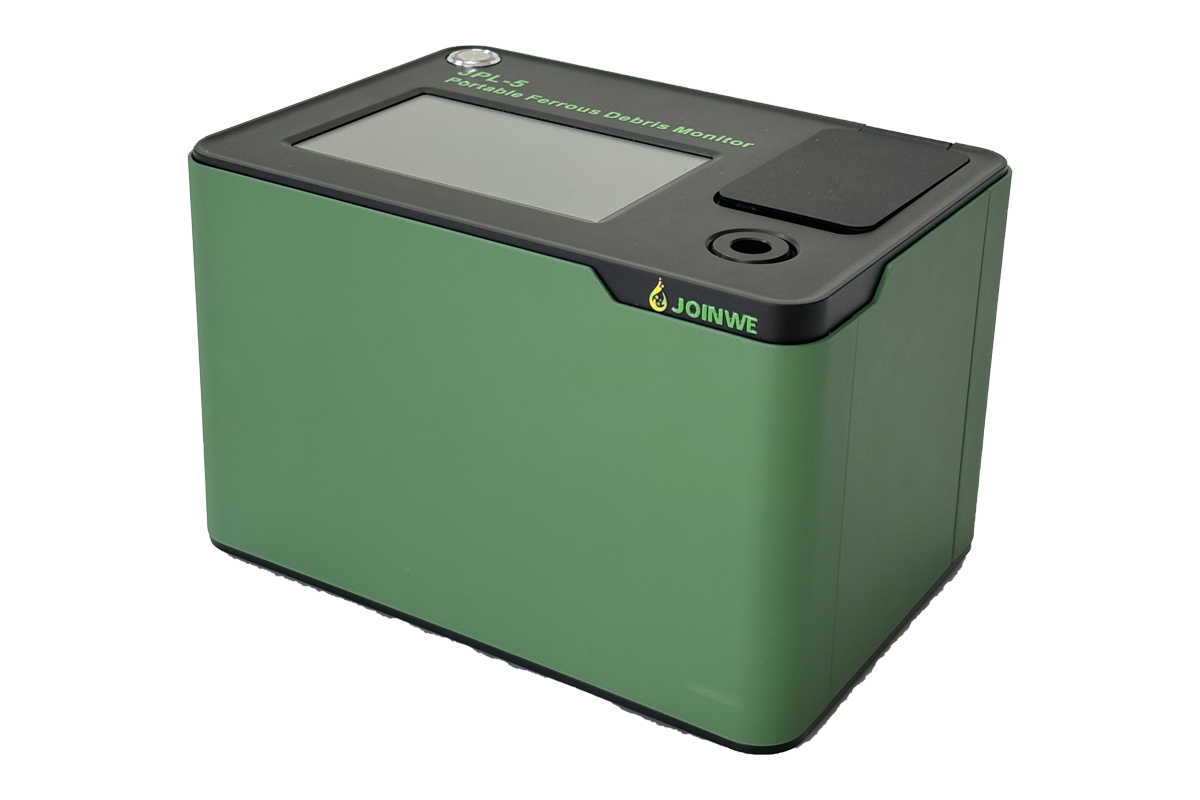

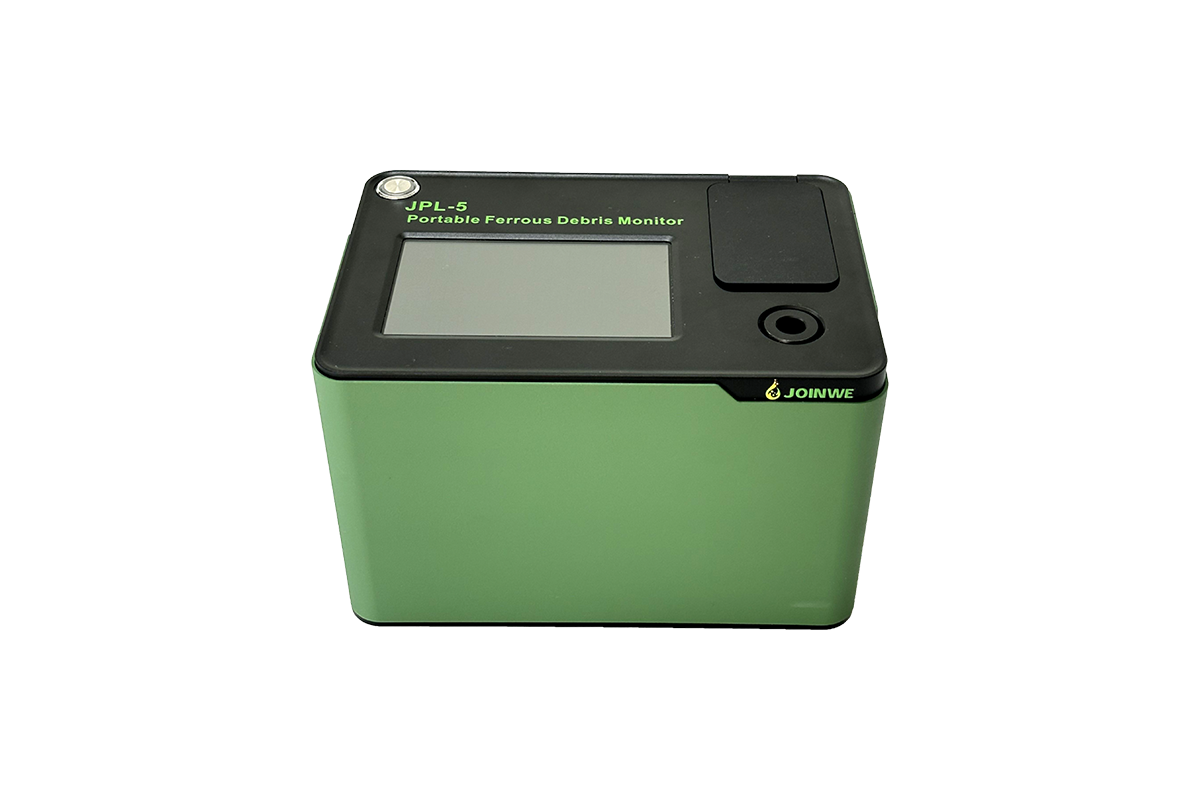

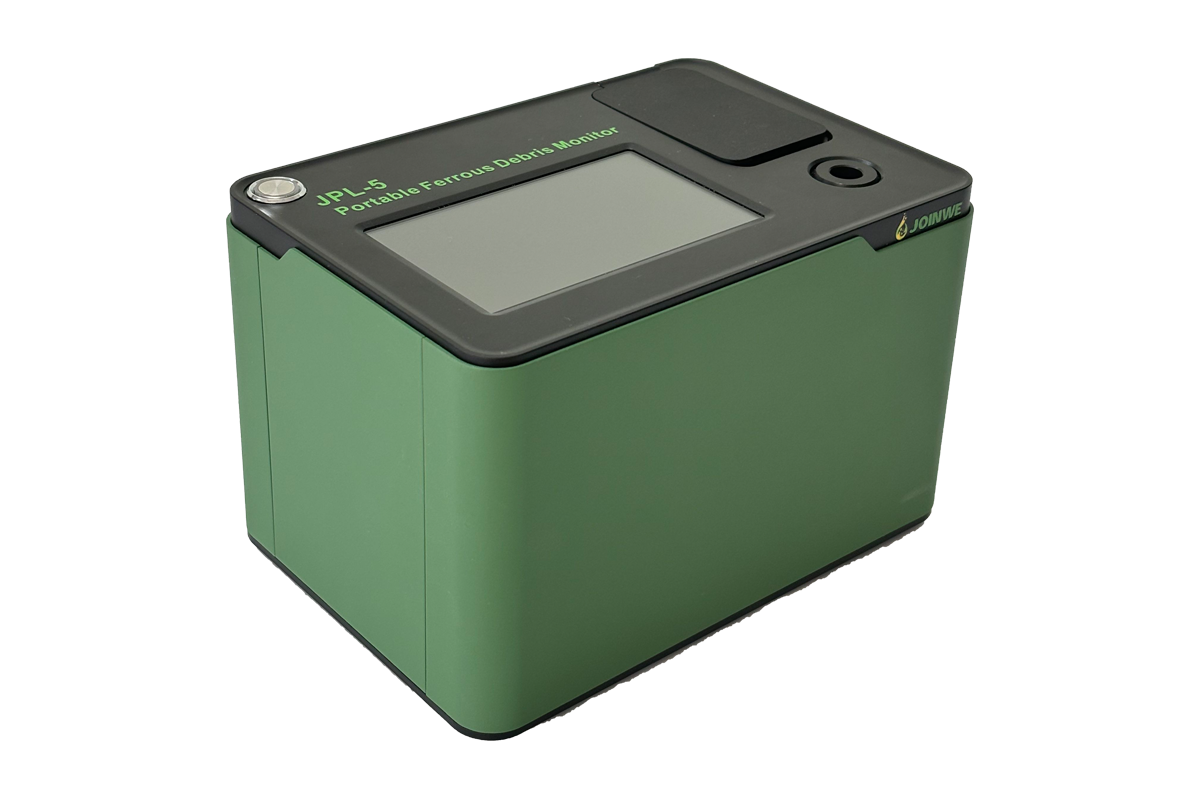

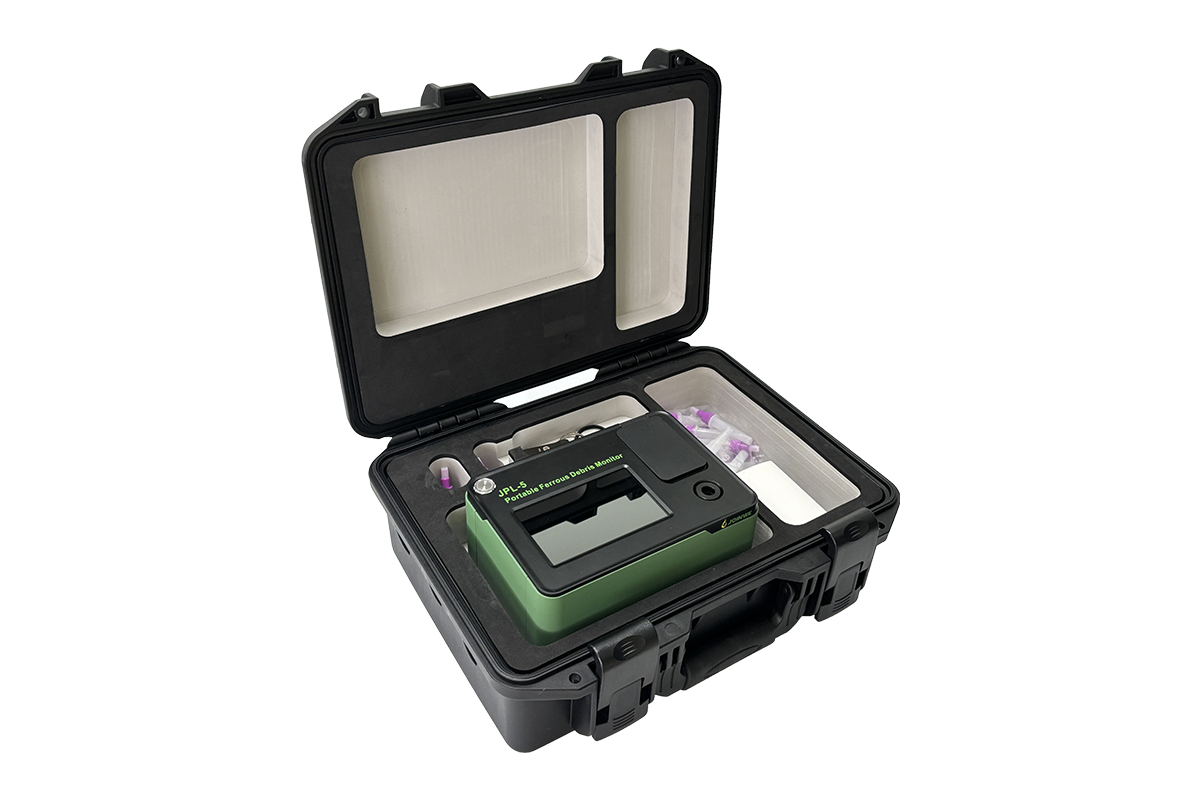

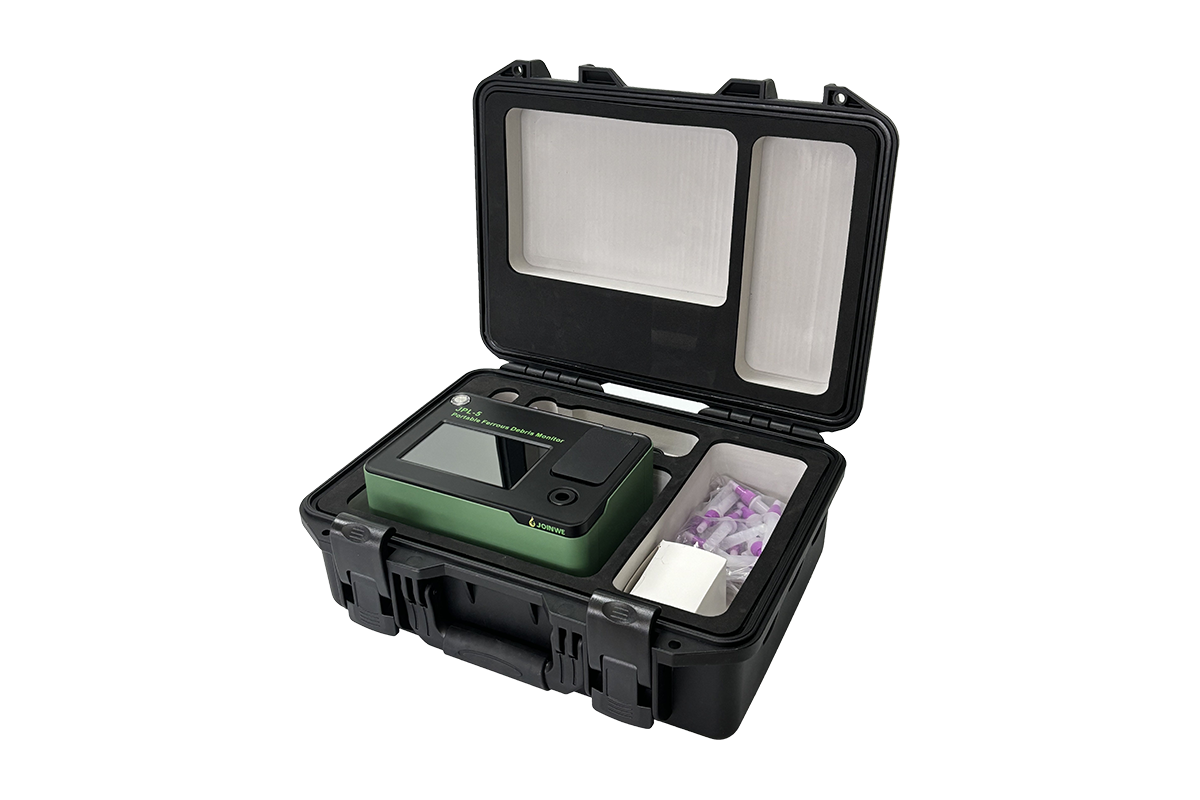

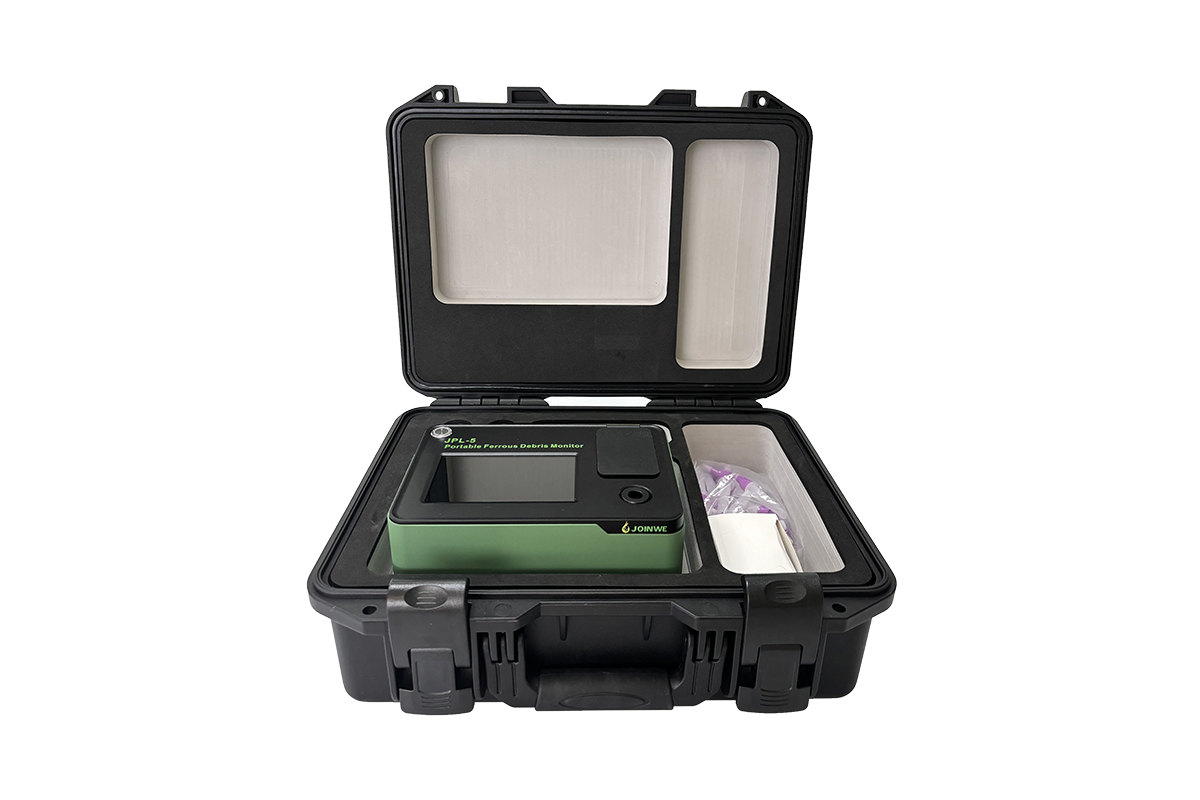

JPL-5 measures the content of wear debris content by using the principle of electromagnetic induction and the magnetic field change of the sensor coil caused by ferromagnetic wear debris content in the oil sample. It shows a good linear relationship with the iron filings content and particle size of the oil sample. It features high sensitivity, accuracy and repeatability. No sample pretreatment or organic solvents are required. It can accurately measure the content of ferromagnetic metal abrasive particles in various oil samples within a few seconds. The measurement results are directly expressed in actual concentration values (milligrams per liter or ppm), facilitating users' interpretation and analysis of the data.

Specification

1. Rapid quantitative determination of the total amount of large-sized ferromagnetic particles in the oil of the equipment .

2. High sensitivity, with a resolution of up to 1 PPM .

3. No sample pretreatment or organic solvents required .

4. Fast detection speed.

5. Measure one data point every 5 seconds.

6. It can analyze the ferromagnetic wear debris content in lubricating oil and grease samples.

7. It meets the usage requirements of both industrial sites and oil monitoring laboratories.

8. The operation of the instrument is extremely simple and can be mastered in just a few minutes without the need for professional training.

9.The WINDOWS system comes with data recording, query, calibration and trend analysis functions.

It is widely applied in fields such as national defense, aerospace, shipping, power, petrochemical, metallurgy, mining, and road transportation.
