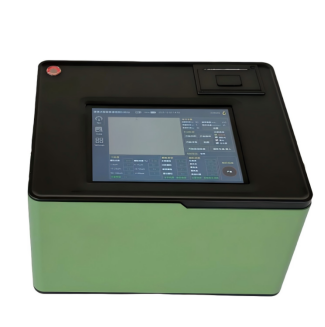

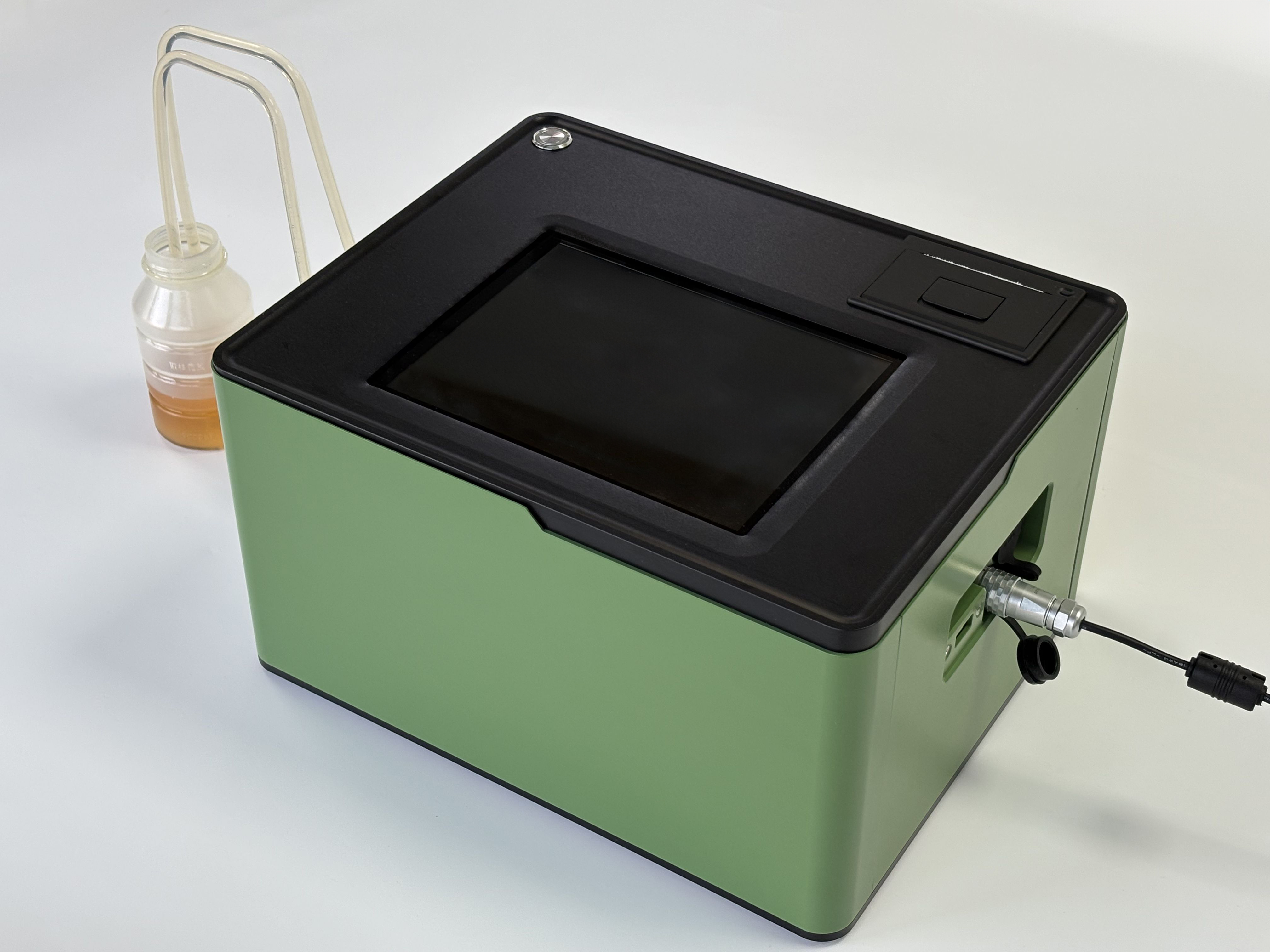

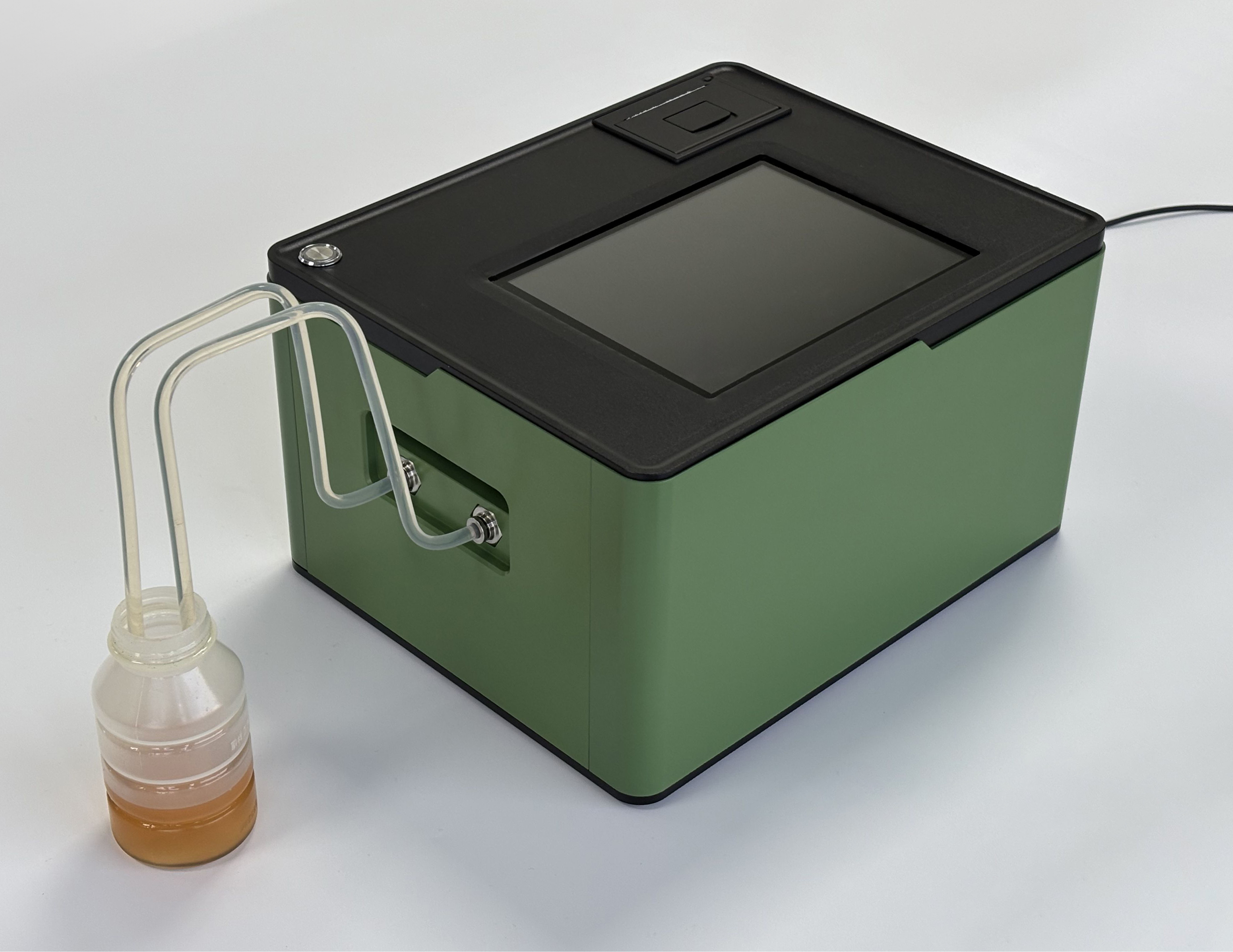

The JPL-6 Ferrographic Video Abrasive Analyzer is an advanced instrument designed for the monitoring and analysis of wear particles in lubricating oils and greases of mechanical equipment. Integrating online image processing, visual display, and real-time data analysis, it is ideal for monitoring the wear status and oil contamination in engines, transmissions, hydraulic systems, gearboxes and other mechanical propulsion systems, enabling predictive maintenance.

Gain precise insights into both ferromagnetic and non-ferromagnetic abrasive particles: measure their size, quantity, spatial distribution, concentration trends and color classification to accurately gauge oil/grease contamination levels and equipment wear status. Our advanced online abrasive image processing technology, evolved from offline ferrography heritage, combines real-time data synchronization with vivid visualization. This setup ensures continuous monitoring and instant visual feedback on equipment health.

We deliver full compliance with ISO 4406 and NAS 1638 standards (particle count, size distribution, cleanliness codes) while specializing in ferromagnetic and non-ferromagnetic particle analysis. Track critical metrics like particle counts of ferromagnetic and non-ferromagnetic particles, quantity of different color particles, proportion of large particles and wear index to simplify trend analysis and decision-making. Beyond standard analysis, our intelligent ferrography technology classifies particles by wear modes—cutting, sliding, fatigue—via detailed concentration, size, color and image data. This holistic approach provides a comprehensive, scientifically-backed wear monitoring solution tailored for industrial reliability

1．Applicable media: engine oil, transmission oil, hydraulic oil, gear oil, fuel oil, lubricating grease and more.

2．Note: Lubricating grease needs to be diluted with petroleum ether before testing.l

3．Measured parameters: ferromagnetic particle count, non-ferromagnetic particle count, particle color classification, size distribution.l

4．Advanced online visual particle detection provides real-time and accurate analysis for ferromagnetic particles (≥10μm) and non-ferromagnetic particles (≥50μm).l

5．Multiple light source outputs, with automatic or manual switching for image capture and observation.l

6．Full visual inspection of the detection process.
